Demo of Shader being effected by Directional Light in Unreal
 |
| Cell Shader Material (utilizing BASE, SSS, ILM Maps) |
 |
| BASE Map with UV overlay |
 |
| BASE Map - SSS Map - ILM Map |
 |

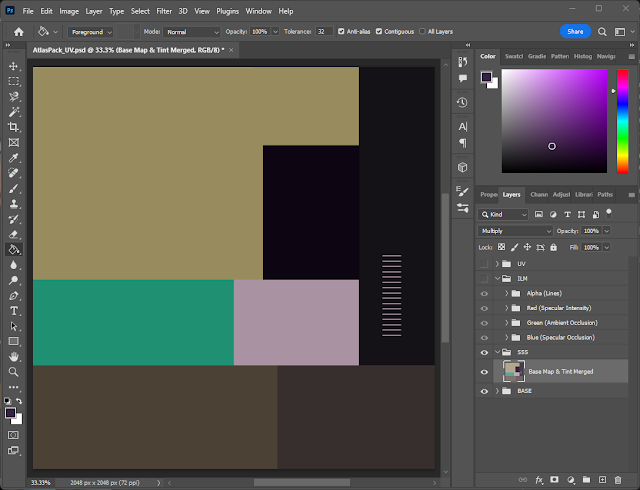

| To create the SSS map I took the BASE map and merged it with a tint layer. |
 |
| After that I set the layer type to multiple, with the BASE map underneath to get the final SSS map. |
 |
| ILM Map Layers are made by Multiplying a base color (RGB) over layers of white, grey and black to create individual channels. Folder groups layer type is then set to Screen to get the final result. |
 |
| Alpha Channel - Line Art Red Channel - Specular Intensity (White - Full Specular / Grey - Partial Specular / Black - No Specular) Green Channel - Ambient Occlusion (White - Always Lit / Black - Always Shadow / Grey - Effected by Shader Lighting) Blue Channel - Specular Occlusion (White - Always Highlight / Black - Never Highlight / Grey - Highlight when Lit) |
Weapon Guitar Project Schedule
Week 01 - Reference, Block out & Initial High Res Sculpt
Week 02 - High Res Adjustments, Game Res Model & UV (First Pass Texture)
Week 03 - Textures Maps & 2D Cell Shader (based on research)
Week 04 - Fixing Texture Maps & Lighting Scene
Research Project Schedule
(This schedule is subject to change according to research findings.)
Week 01 - Texture in Blender VS Substance Painter
Week 02 - Guilty Gear Shader Research
Week 03 - Texture Maps
Week 04 - Putting it all together in Unreal
 |
| Concept Art by IdeaXu |
Resources
